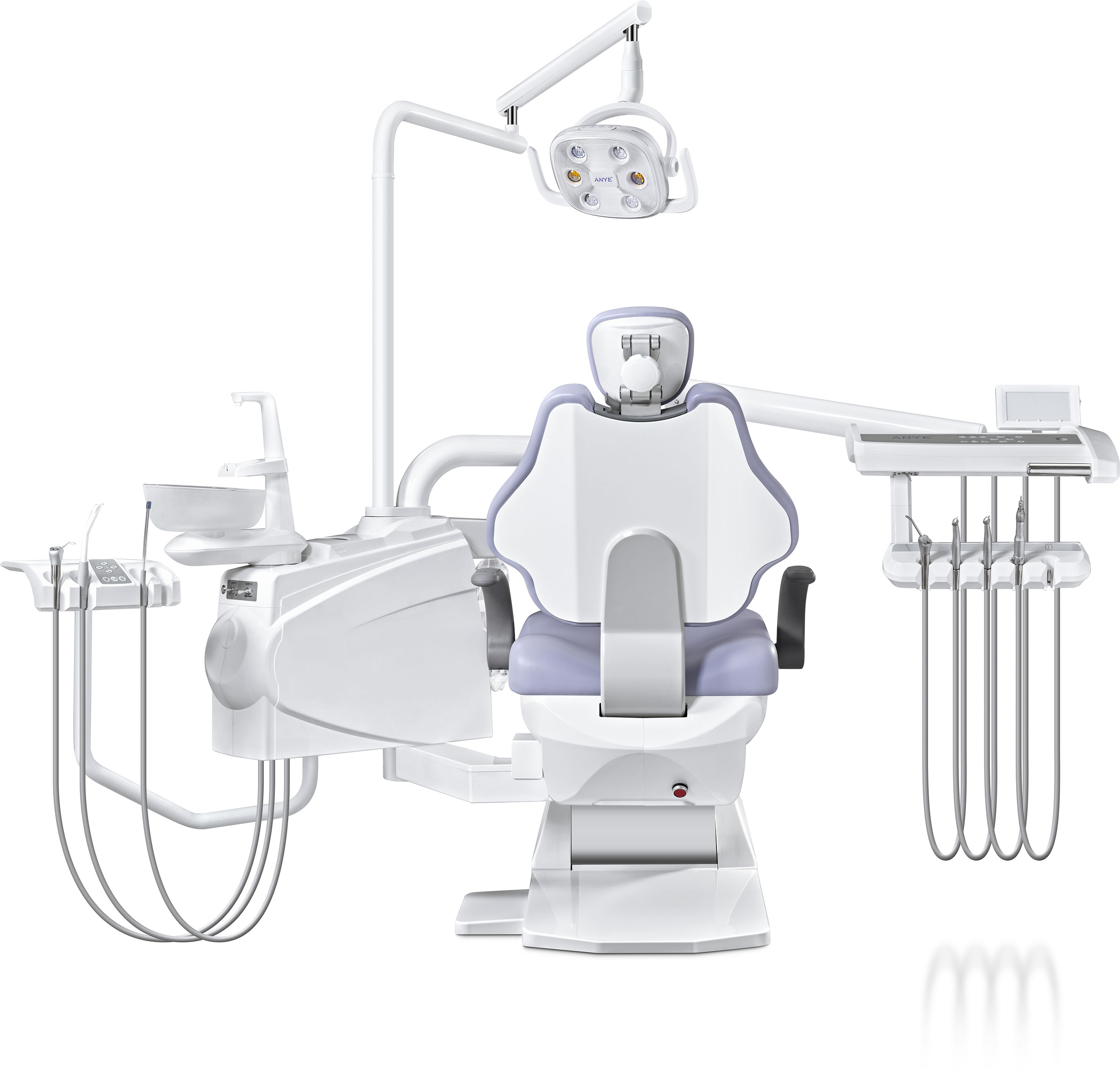

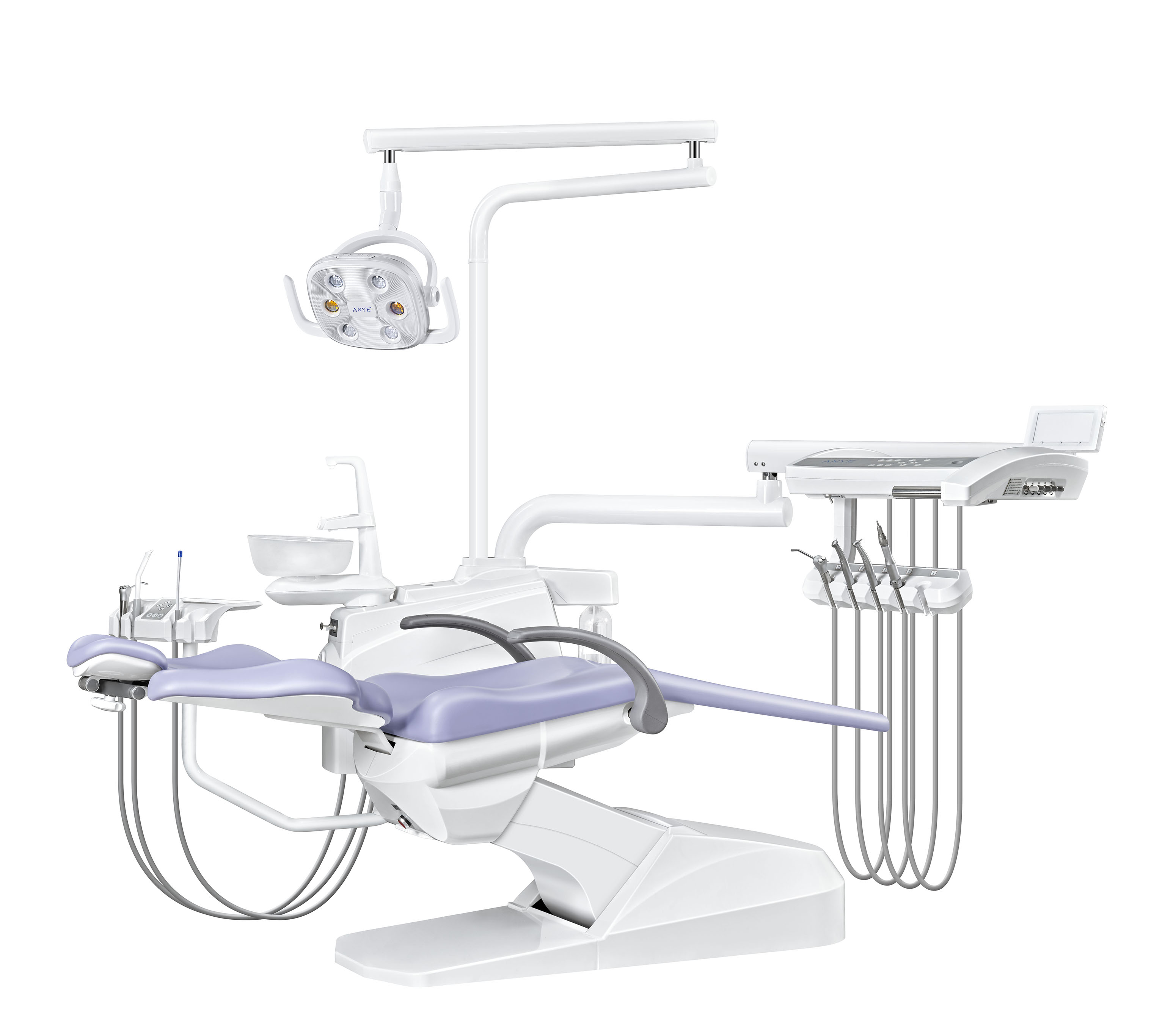

AY-215C2 - The perfect blend of technology and comfort, designed for professional dental treatment. Ergonomic seat with automatic elevation adjustment, equipped with LED bi-colour light, provides a personalised comfort experience.
Technical Parameters:
|
Power Voltage |
220V-50HZ/60HZ |
|
Motor Voltage |
24V |
|
Air Pressure |
0.5MPa-0.8MPa |
|
Water Pressure |
0.2MPa-0.4MPa |
Product Details:
Deluxe Detachable Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.
Instrument Tray
The large capacity instrument tray allows for easy store to more medical items needed for treatment. Equipped with an air brake to make it stable and not shake when the dentist is working and the large-capacity instrument panel is convenient for storing medical supplies needed for treatment.

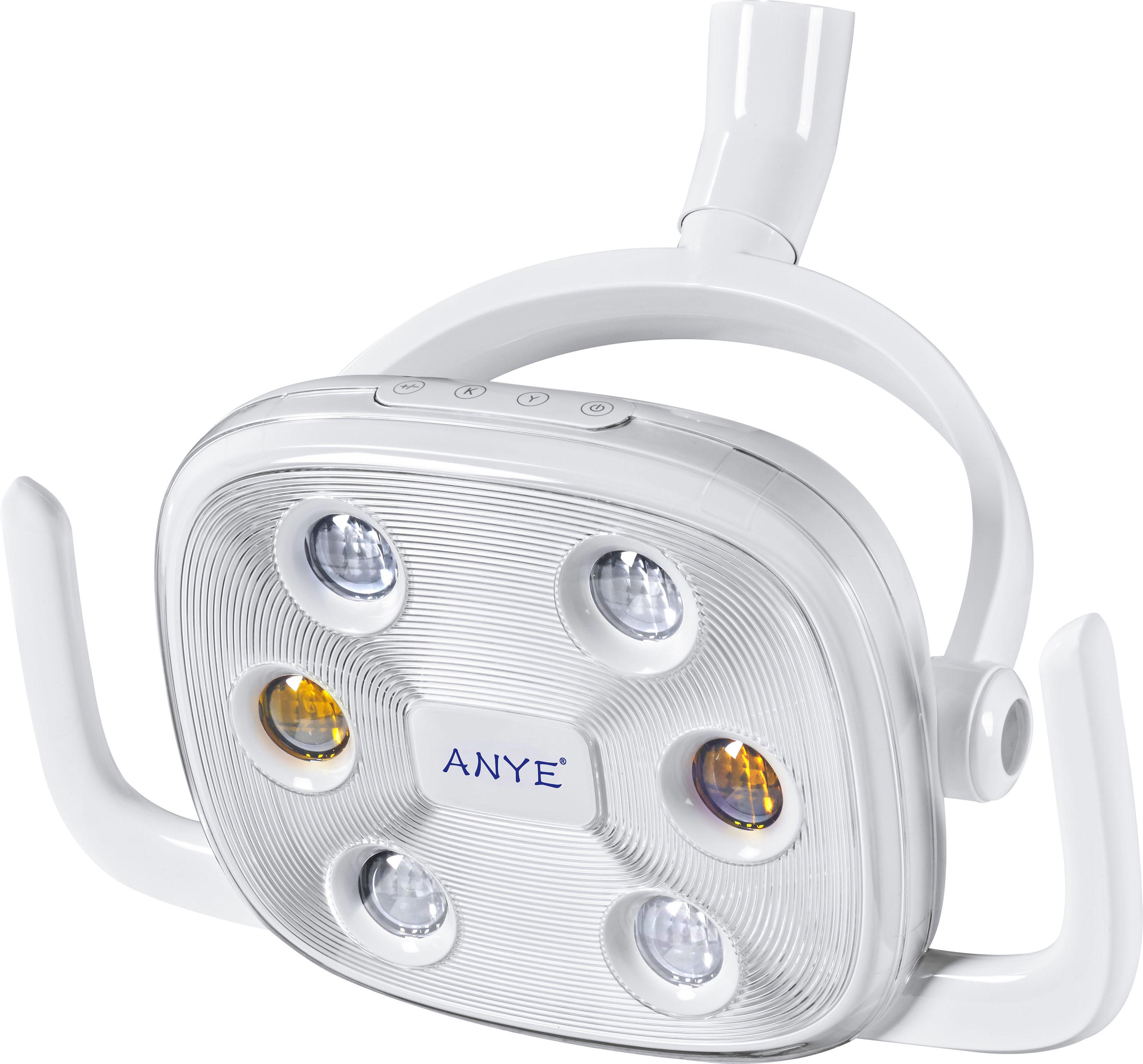

Six Beads LED Dual-color Operating Light
Philips brand lamp beads, specially designed for dental and dual-color light source (4 white light-emitting diodes (LED) 2 white light-emitting diodes (with filter)), large projection angle, high illumination adjustable from 8.000 to 30.000, infrared sensing switch or flick switch to control the infinite dimming, color temperature (5000K ± 10%). The light spot conforms to the rectangular light spot required for oral surgery.
One-touch Toggle Water, Air and Electric Main Switch
Switch set at the bottom right of the instrument tray. Convenient for commuting to and from work and for starting/shutting off water, air and electricity.
Assistant Control System
With 7-button control panel for easy control of common functions of the dental chair by the assistant. Assists the doctor in improving efficiency.
Rotatable Armrest
The armrest can be rotated horizontally, which is convenient for patients to lie up and down the chair.
Rotatable Side Box
Cast aluminium frame with 45° rotatable side box, it is easy to locate the position needed by the assistant with a wide range of movement.
Full Cast Aluminium Foot Pedal
Full cast aluminum process design, light weight, no rust, strong durability, adjustable chair lifting, backrest pitching, separate water control, blowing crumbs of air, mute micro-control of handpiece speed and other functions.

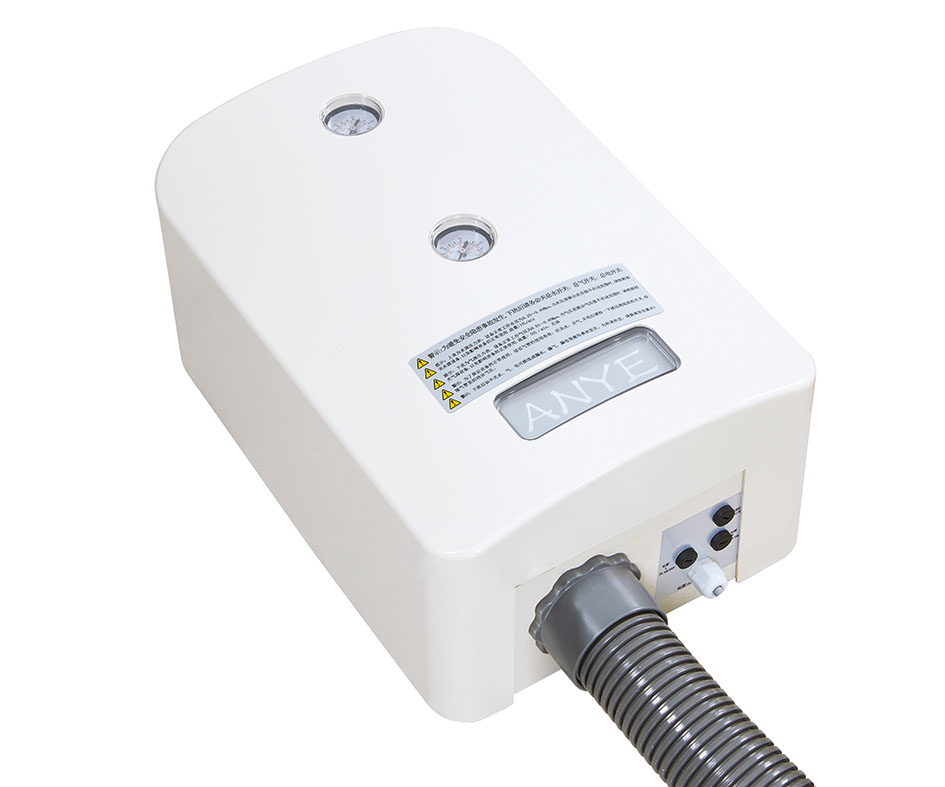

Optional External Junction Box
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole chair.
Cast Aluminium Dental Light Arm
Improved mobility, light weight, more flexible for multi-directional movement, long service life (after 100,000 fatigue tests).
Dentist Stool A
It adopts 360° silent universal wheels, which can be adjusted up and down to support the buttocks and relieve fatigue.
4mm High Quality Steel Is Cut By Laser Cutting Machine
All ABS Plastic By Injection Moulding
Import Medical Water & Air Tube
Import Member And Valve
Import Motor
Import Pressure Reducing Valve
Import Solenoid Valve
Self-designed PCB System, Import Chip
As a globally recognized leader in dental equipment innovation, Anye Dental combines cutting-edge engineering with ergonomic mastery in the Dental Unit AY-215C2. Designed for clinics prioritizing patient comfort and procedural efficiency, this model exemplifies CE-certified safety protocols and ISO 13485-compliant manufacturing processes, ensuring compliance with stringent international medical standards. With over 15,000 square meters of advanced production facilities in Foshan, China, equipped with Kuka robotic assembly lines and laser-cut steel components, Anye Dental delivers precision-crafted solutions trusted by practitioners in 60+ countries.
The AY-215C2 integrates hospital-grade disinfection systems, programmable positioning, and dual-color LED surgical lighting, addressing critical demands in modern dental workflows. As part of Anye’s 215-Series, this unit offers interoperability with specialized models like the sterilization-focused 215-C5 and pediatric 215-D Series, creating a scalable ecosystem for diverse clinical needs.
The Dental Unit AY-215C2 operates on a 24V DC motor system, optimized for silent, vibration-free adjustments between 0.2–0.8MPa air pressure and 0.2–0.4MPa water pressure. Its automatic elevation mechanism supports 360° rotation with ±1mm positional accuracy, enabling seamless transitions from supine to upright patient positioning.
Key Technical Parameters
| Feature | Specification | Clinical Advantage |
|---|---|---|
| LED Operating Light | 8,000–30,000 lux, 5000K ±10% CCT | Shadow-free illumination for oral surgery |
| Chair Movement Range | 65° backrest tilt, 120mm vertical lift | Optimal access to posterior dentition |
| Noise Level | ≤45 dB | Reduced patient anxiety during procedures |
| Weight Capacity | 200 kg | Accommodates diverse patient demographics |
Certified by TÜV Rheinland for electrical safety and FDA 21 CFR 872 for medical device compliance, the AY-215C2 meets rigorous operational demands. Its self-designed PCB system with imported STMicroelectronics® chips ensures uninterrupted performance across 220V/50–60Hz power inputs.
Anye Dental’s 15-year ergonomics research culminates in the AY-215C2’s 7-axis adjustable dentist stool and 90° rotatable spittoon. The cast aluminum foot pedal reduces operator fatigue through pressure-sensitive microcontrols, while the 45° pivoting instrument tray positions tools within a 35cm golden ratio zone, minimizing repetitive motion strain.
For patients, the contoured headrest and memory foam upholstery (tested over 10,000 compression cycles) provide unparalleled support during prolonged treatments. The detachable cuspidor, featuring UV-C sterilization, simplifies infection control protocols between appointments.
Rigorously tested against EN 1641:2019 disinfection standards, the AY-215C2 integrates:
These features align with global best practices outlined in Anye’s guide to Infection Control in Dental Chair Design.
Within Anye’s 15,000 sqm smart factory, the AY-215C2 undergoes 217 quality checkpoints, including:
The facility’s Kuka KR AGILUS robots assemble critical components like the rotatable armrest and aluminum light arms with micron-level precision, achieving <0.5% defect rates across 120,000 annual units.
For specialized requirements, Anye offers 215-Series variants:
Explore technical comparisons in our Comprehensive Dental Chair Buyer’s Guide.
The AY-215C2 Dental Unit serves as the foundation of Anye’s modular ecosystem, interoperable with 12 accessory modules ranging from implant motors to 3D intraoral scanners. Clinics can integrate the AY-215C5 sterilization variant for surgical suites or pair it with the pediatric-focused AY-215D Series, which features 20% smaller ergonomic profiles and cartoon-themed LED panels to ease anxiety in young patients.
For rehabilitation dentistry, the AY-215E1 model offers 30° incremental leg rest adjustments and 800N lift capacity, supporting patients with mobility challenges. All variants share a unified 24V DC power architecture, allowing cross-compatibility with Anye’s Silent Air Compressors and Hydraulic Control Systems.
Designed for high-risk environments, the 215-B5 and 215-C5 units incorporate:
These models comply with CDC 2003 Guidelines and HTM 01-05 Standards, as detailed in Anye’s Disinfection Protocol Handbook.
Backed by CE Marking (MEDDEV 2.12/1 rev.8) and ISO 13485:2016 certification, Anye Dental provides localized support through 23 regional hubs, including warehouses in the U.S. (Texas), Germany, and UAE. Each AY-215C2 includes:
Our multilingual engineering team resolves 98% of technical issues within 48 hours, minimizing clinic downtime.
Anye’s Foshan facility holds ISO 14064-1:2018 carbon-neutral certification, utilizing 100% recycled aluminum in chair frames and UV-curable paints with <50 g/L VOC emissions. The AY-215C2 meets:
For export markets, units are pre-configured to regional voltages and pre-installed with US Dental Compliance Packages.
As a Top Chinese dental chair manufacturer, Anye Dental balances innovation with pragmatic reliability. The AY-215C2 Dental Unit exemplifies our philosophy: precision engineering meets patient-centered design. With 15+ patented technologies and 6.2% annual R&D reinvestment, we empower clinics to deliver superior care while optimizing operational costs.
Explore our Full 215-Series Catalog or consult Anye’s Ergonomics White Paper to customize your clinic’s ecosystem. Contact our U.S. team at +86 -0757-81006901 or schedule a Live Virtual Demo to experience the AY-215C2’s capabilities firsthand.
|
One-button main switch for water, air and electricity |
|
Bi-colour LED dental light (manual/sensor) |
|
Advanced adjustable protective headrest |
|
LED X-Ray Viewer |
|
24v silent DC motor (Synchronized) |
|
Multifunctional foot switch (with chip blowing) |
|
Down mounted Instrument tray |
|
3-way syringe (cold, hot) |
|
Electric dental chair control system |
|
Removable tempered glass spittoon |
|
Strong and weak saliva suction system (with filter) |
|
Auto spittoon flush and cup filler control system |
|
Cast aluminium side box |
|
Tissue box |
|
External junction box (or built-in junction box) |
|
Dentist stool A |
|
PU leather |
8 Beads LED Operating Light
(White&Yellow)
6 Beads LED Operating Light
(White&Yellow)
12-hole Implant Operating Light
(White&Yellow)
Dentist stool C
Dentist stool A
Luxury Top-mounted instrument tray
Top-mounted instrument tray
Luxury cast aluminum multifunctional pedal
Cast aluminum multifunctional pedal
Cast aluminum pedal
Monitor holder
Curing Light
Curing Light
Scaler
