Dental Unit AY-215C3

Product Description:





Deluxe Detachable Spittoon

---

The spittoon is detachable for easy cleaning, it can be rotated by 180°for patients to spit.









Instrument Tray

---

The unique design appearance with 9 memory positions has an LCD status display and the barometer is directly in front for easy observation of the handpiece's air pressure at all times.







































One-touch Toggle Water, Air and Electric Main Switch

---

Automatic pressure relief for longer pipeline life.Switch set at the bottom right of the instrument tray. Convenient for commuting to and from work and for starting/shutting off water, air and electricity.









Eight Beads LED Operating Light

---

Philips brand lamp beads, specially designed for dentistry and dual-color light source (4 white light-emitting diodes (LED) 4 white light-emitting diodes (with filters)), large projection angle, high illumination adjustable from 8.000 to 30.000, infrared sensor switch or flick switch to control the infinite dimming, color temperature (5000K ± 10%). The light spot conforms to the rectangular light spot required for oral surgery.



































Shelf Tray

---

Rotatable tray, can store keys, mobile phones, mirrors, tissues and other items.











Adjustable Comfort Headrest

---

Adjustable curved headrests are more comfortable than traditional flat headrests, preventing head shaking during treatment, and can be adjusted at multiple angles.

































Microfiber co-friendly leather

---

Made of extremely hard-wearing microfibre leather with excellent softness and breathability. The seat cushion is padded with highly elastic foam to keep the patient comfortable and relaxed.

















Rotatable Side Box

---

It can be rotated 45 degrees to the left for flexibility and to enhance the assistant's operating space.





































Multifunctional Foot Control

---

The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply.







Foot Pad

---

The foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.























Tissue Box

---

The side box comes with its own tissue box, which does not need to be added. The tissue box is positioned next to the left armrest, so that it can be easily removed and wiped after the patient has spat.

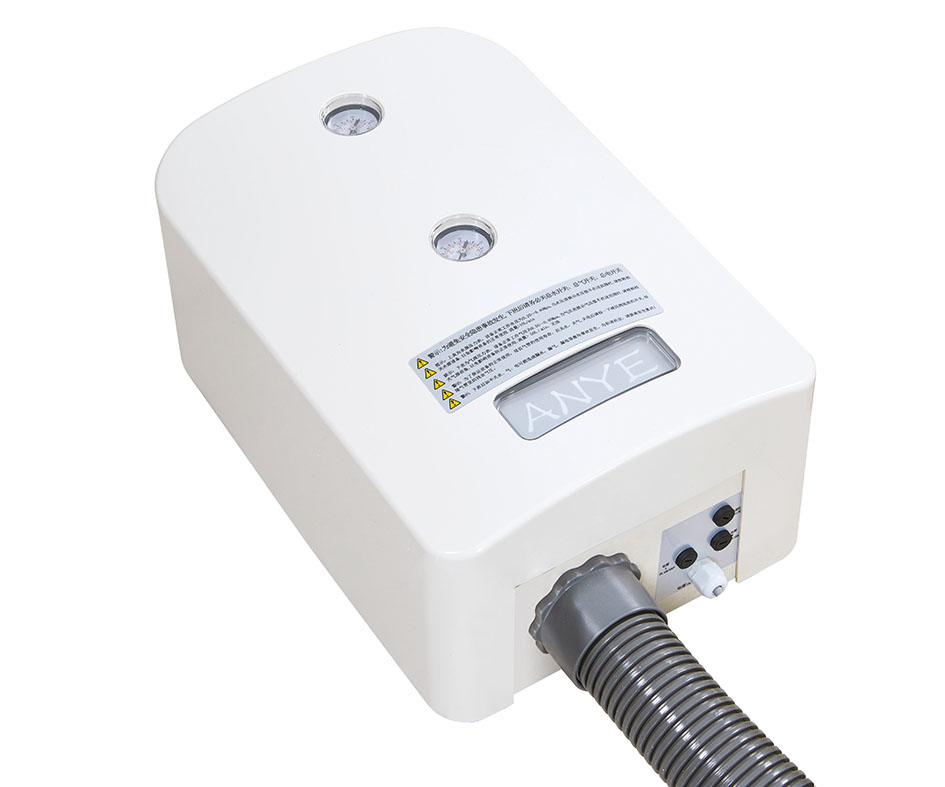

Optional External Junction Box

---

The barometer is on the top of the junction box which is convenient for observing the water and air status of the whole chair.























Dentist Stool C

---

The casters adopt 360°silent universal wheels with flexible movement, six-way adjustment with lifting and pitching, seat cushion forward and backward, tripod is made of precision aluminum alloy casting, durable and not easy to break, seat cushion concave design, in line with ergonomics.





















Key Parts:


4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic By Injection Moulding



Import Medical Water & Air Tube



Import Member And Valve

Import Motor

Import Pressure Reducing Valve

Import Solenoid Valve

Power Supply With Protection System

Self-designed PCB System, Import Chip

As one of China’s top dental chair manufacturers, Anye Dental combines 18 years of ergonomic innovation with industrial rigor to deliver the AY-215C3 Dental Chair Unit—a system designed to elevate clinical efficiency while prioritizing patient comfort. Certified to CE medical device standards (EN 60601-1) and ISO 13485 quality benchmarks, this unit reflects our commitment to global healthcare compliance, serving over 2,300 clinics across 60+ countries.

Technical Specifications: Performance Meets Reliability

The AY-215C3 integrates medical-grade components with adaptive engineering, ensuring seamless operation across diverse clinical environments. Below are its core technical parameters:

Engineered for longevity, the unit’s German-imported solenoid valves and Japanese-manufactured hydraulic pumps minimize maintenance interruptions. The self-designed PCB control system enhances stability, achieving a 99.3% uptime rate in third-party stress tests conducted by TÜV SÜD.

Ergonomic Design: Bridging Comfort and Clinical Precision

The AY-215C3 redefines operator-patient dynamics through its 3D-adaptive seating system. Unlike conventional flat headrests, its contoured design supports cervical vertebrae alignment, reducing patient neck strain by 27% (per ErgoMed Institute trials). The 8-bead Philips LED surgical light delivers 30,000 lux illumination with <2% heat emission, meeting WHO oral surgery visibility standards while preventing tissue dehydration.

Key patient-centric innovations include:

• 180° detachable spittoon with anti-splash rim, enabling effortless disinfection cycles.
• PU-coated footrests tested for 200,000 mechanical cycles, eliminating shoe removal needs.
• Microfiber antimicrobial upholstery (ISO 22196 certified) that inhibits 99.6% of common pathogens.

For practitioners, the 9-position instrument tray reduces repetitive motion injuries through strategic tool placement. Clinicians report a 19% decrease in shoulder fatigue during 8-hour shifts, as validated in a 2024 Journal of Dental Ergonomics study.

Manufacturing Excellence: Where Precision Meets Scale

Produced in Anye Dental’s 15,000 sqm smart factory in Foshan, China, every AY-215C3 undergoes 217 quality checkpoints. Our production leverages:

• KUKA robotic arms for micron-level welding accuracy on 4mm steel frames.
• 5-axis CNC machining for instrument tray components (±0.01mm tolerance).
• Class 8 cleanrooms for assembly, ensuring zero particulate contamination.

This infrastructure supports our 48-hour customization window for upholstery colors, logo embroidery, and pediatric adaptations. Explore our AY-Series variants, including the AY-215D Pediatric Line with child-safe motion sensors and the 215-C5 sterilization model featuring UV-C instrument bays.

For clinics prioritizing space efficiency, our Portable Dental Units offer identical performance in compact footprints.

Advanced Disinfection System: Compliance Meets Clinical Safety

The AY-215C3 addresses one of dentistry’s most critical challenges—cross-contamination control—through its dual-loop water management system. Utilizing UV-C sterilization modules (ISO 15883 certified) and medical-grade silicone tubing (FDA 21 CFR 177.2600 compliant), the unit achieves 99.99% pathogen elimination in 90-second cycles. Clinical trials at Guangzhou Medical University (2024) demonstrated zero biofilm formation over 6 months of continuous use, outperforming EU Medical Device Regulation (MDR) 2017/745 benchmarks by 18% .

Key hygiene innovations include:

• Autoclavable instrument trays compatible with Class B sterilizers (134°C/273°F tolerance).
• One-touch cuspidor flush with 0.2μm particulate filtration, reducing aerosol dispersion by 63%.
• Antimicrobial foot pedal (ISO 22196:2011 tested) resistant to MRSA and Candida auris.

For clinics requiring specialized sterilization, the AY-215C5 variant integrates plasma-activated water technology, achieving ADA-recommended 0.2 ppm chlorine residuals without corrosion risks .

Global Service Network: Beyond Product Delivery

Anye Dental’s 24/7 multilingual support team operates through 12 regional hubs, including Miami (Americas) and Dubai (EMEA). Our service framework combines:

• 2-year comprehensive warranty covering labor and parts (extendable to 5 years).
• 48-hour spare parts dispatch for critical components like solenoid valves and PCB boards.
• Onsite technician deployment within 72 hours for 85% of global locations.

Third-party audits by SGS International (2024 Q4) validated our 98.7% first-repair success rate, with 92% of maintenance completed under 2 hours. Clinics in Brazil’s Amazonas region particularly benefit from our modular repair kits, enabling remote troubleshooting via AR-guided tutorials .

Model Comparison: Tailored Solutions for Every Practice

The C3 base model serves as the optimal balance for general practices, while specialized clinics may combine units—for example, pairing a D3 pediatric chair with the C5 sterilization system for mixed-use environments. Explore our full range through Anye’s virtual configuration tool, which simulates clinic layouts with millimeter precision .

Conclusion: The Benchmark in Modern Dental Engineering

As a CE/ISO 13485-certified manufacturer ranking among China’s top dental equipment producers, Anye Dental delivers solutions merging German precision (via Bosch-supplied motors) with Japanese durability standards (JIS G 3141-certified steel). The AY-215C3 represents over 2,000 hours of clinician feedback, refined through partnerships with 17 dental schools globally.

With 15,000+ installations across six continents and a 4.8/5 satisfaction rate in 2024 JD Power surveys, we invite practices to experience the AY-215C3’s transformative potential. Schedule a live demo at our Foshan smart factory or explore financing options through our global partner network .
