Implant Dental AY-215A1 the side position of the assistant lever can be rotated 180° left and right as a whole, simple and efficient implant unit, provide with large and comfortable backrest especially for long periods lying.
Technical Parameters:
|
Power Voltage |
220V-50HZ/60HZ |
|
Motor Voltage |
24V |
|
Air Pressure |
0.5MPa-0.8MPa |
|
Water Pressure |
0.2MPa-0.4MPa |
Product Details:
Detached Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.
Liftable Stainless Steel Instrument Tray
Electric dental chair control system, - With 18 button on the main key board,
- 9 memories position control,
- one-key preset working position,
- Independent handpiece water adjustment in front Greatly improving the doctor's work efficiency. The stainless steel instrument tray can be wiped and disinfected.
12-Beads LED Operating Light
12-hole brand lamp beads, high brightness, good shadowless effect, long service life of the lamp beads with manual induction adjustment.
Diagnosis and treatment application
Multi-screen connection, real-time display, dental multi-diagnosis and treatment, the first choice for treatment.
Teaching application
Connected to a computer, real-time multi-screen display can be realized to achieve the purpose of multi-disciplinary teaching.
High-definition dental camera box
With recording, snapshot, and immediate playback functions
Timely video during live broadcast or video playback;
Take screenshots during playback;
Take screen shots during the video playback;
Search time during video playback;
Editable recorded videos
Video segmentation and merging can be performed in editing mode;
Watermark can be added to the video;
Luxury Backrest
The stainless steel backrest inside is made of 4mm steel plate laser cutting, which is solid and stable. It’s greatly improves the comfort.
Flushing and Water Supply
The water supply nozzle is higher 2cm above surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during flushing. The water supply seat can be detached for cleaning

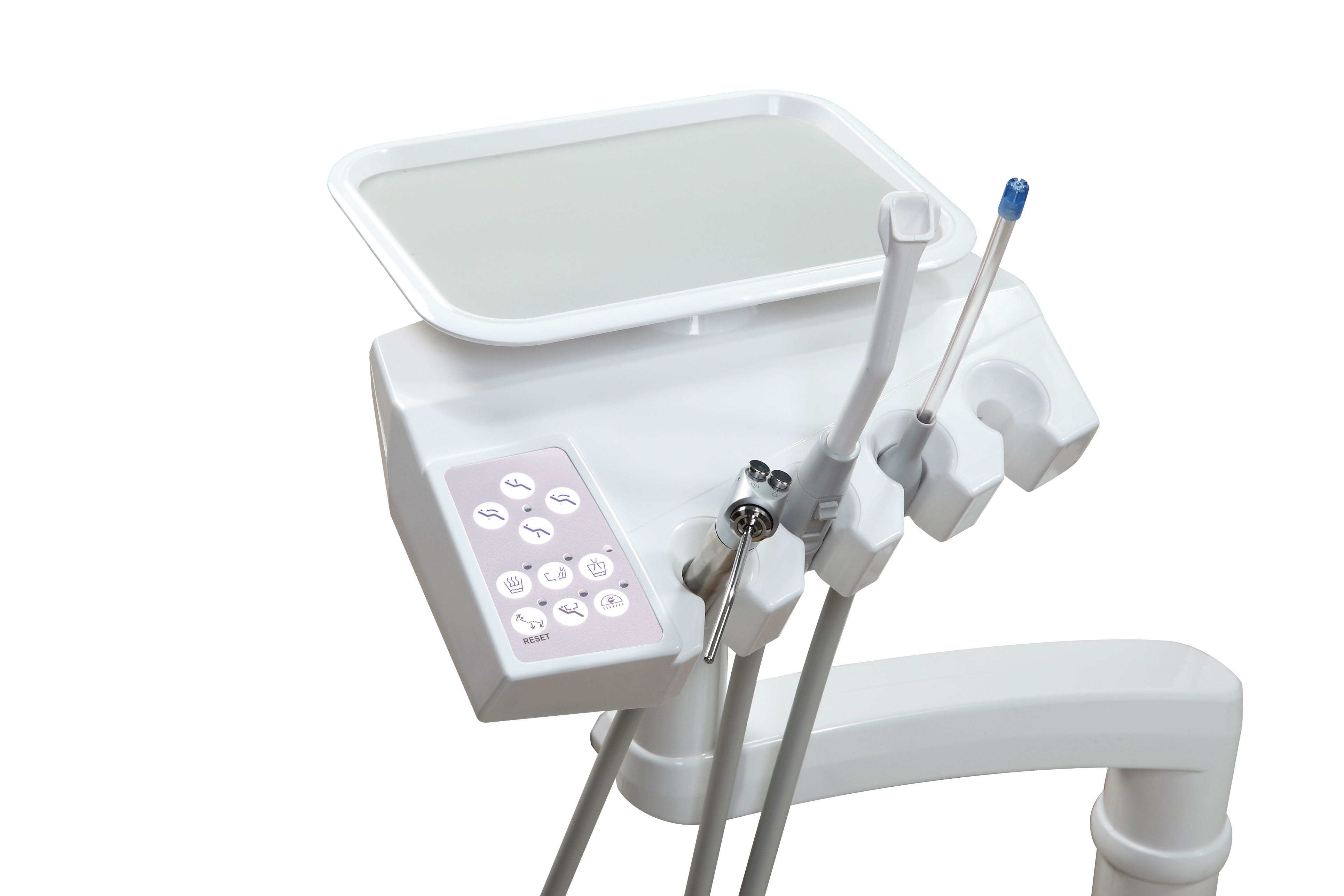

Assistant Control System
With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.
Rotatable Armrest
The armrest can be rotated horizontally, which is convenient for patients to lie up and down the chair.
Foot Pad
The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
Chair Frame
The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.
Rotatable Side Box
The side can be rotated 180°and move in a wide range, which can easily locate the required position and maximize the space of assistant.
Dentist Stool C
Dental stool C with 360°noiseless universal wheel, it can be lifting and pitching adjustment.
Multifunctional Foot Pedal
-With self-locking function,
- Control up and down of dental chair, backrest position, cuspidor flushing and water supply.
Cast Aluminum Lamp Holder
Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).
Key parts:
4mm High Quality Steel Is Cut By Laser Cutting Machine
All ABS Plastic By Injection Moulding
Import Medical Water & Air Tube
Import Member And Valve
Import Motor
Import Pressure Reducing Valve
Import Solenoid Valve
Power Supply With Protection System
Self-designed PCB System, Import Chip
The AY-215A1 stands as a testament to the fusion of comfort and technology in the realm of professional dental units. This fourth-generation high-end product has been meticulously designed to cater to the clinical professional needs of medical staff while ensuring patient comfort. Its ergonomic streamline design, which automatically adjusts to form an elevation angle in sync with the cushion movement, provides a superior sense of back support. The AY-215A1's thoughtful design is a testament to patient comfort.
A standout feature of the AY-215A1 is its detachable spittoon, designed for easy cleaning and patient convenience. It can be rotated by 90°, allowing patients to spit with ease.
The AY-215A1 is equipped with an electric dental chair control system, featuring 18 buttons on the main keyboard and 9 memory position controls. It also includes a one-key preset working position and independent handpiece water adjustment in front, significantly improving the doctor's work efficiency. The stainless steel instrument tray, which can be wiped and disinfected, is a testament to the unit's commitment to hygiene.
The unit is fitted with 12-hole brand lamp beads, offering high brightness, a good shadowless effect, and a long service life. The lamp beads come with manual induction adjustment, ensuring optimal lighting conditions.
The AY-215A1 can be equipped with a Sony camera sensor, offering full HD 1080P, auto focus, and a focus range of 450mm~1000mm, with up to 30x optical zoom. This feature is perfect for diagnosis and treatment applications, as well as teaching applications. The high-definition dental camera box comes with recording, snapshot, and immediate playback functions.
The unit's luxury backrest, made of 4mm steel plate laser cutting, is solid and stable, greatly improving patient comfort.
The water supply nozzle is 2cm above the surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during flushing. The water supply seat can be detached for cleaning.
The unit features a multi-functional control panel, making it convenient for the assistant to use the common functions of the dental chair and assist dentists to improve work efficiency.
The armrest can be rotated horizontally, which is convenient for patients to lie up and down the chair.
The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.
The trolley instrument tray has 9 memory positions, 6 handpiece holder, with central suction and an independent handpiece water regulating valve. Instrument tray is made of stainless steel and the surface can be deeply disinfected. It can place the equipment needed for treatment. Instrument tray size: 580*370mm.
The side can be rotated 180°and move in a wide range, which can easily locate the required position and maximize the space of assistant.
Dental stool C with 360°noiseless universal wheel, it can be lifting andpitching adjustment.
The junction box comes with a main switch for water, electric and air. The barometer is conveniently located on the top of the junction box, making it easy to observe the water and air status of the whole machine.
The unit features a multifunctional foot pedal with a self-locking function. It controls the up and down movement of the dental chair, backrest position, cuspidor flushing and water supply.
The lamp holder, made of cast aluminum, offers high flexibility and a long service life (after 100,000 fatigue tests).
The AY-215A1 dental chair implant unit is composed of several key parts, including:
The AY-215A1 dental chair implant unit is a high-end professional dental unit designed to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. With its ergonomic streamline design, luxury backrest, and a host of other features, it offers a comfortable and efficient solution for dental procedures. For more information on dental units, visit ANYE Medical.
|
Positive pressure automatic drainage system |
|
One-button switch system for water, gas and electricity |
|
Implant dental light |
|
Monitor holder |
|
Synchronized large chair frame |
|
24V silent DC motor |
|
Advanced adjustable headrest |
|
Super fiber leather seat cushion |
|
Multifunctional foot control |
|
Emergency stop switch |
|
Stainless steel control panel with movable cart |
|
Stainless steel instrument tray (with air brake) |
|
LED x-ray |
|
3-way syringe (cold) |
|
Electric dental chair control system |
|
Main control panel with 18 buttons, including 9 memory bit controls |
|
Automatic water rationing system for washing and rinsing |
|
With negative pressure device, position selection valve sets strong and weak saliva suction system |
|
Manual control system |
|
Rotating filter |
|
Rotating and easily removable spittoon |
|
Recessed closed floor box |
|
Imported water and gas pipes |
|
With pressure reducing valve |
|
Dentist Stool A |
|
Dentist Stool C |
8 Beads LED Operating Light
(White&Yellow)

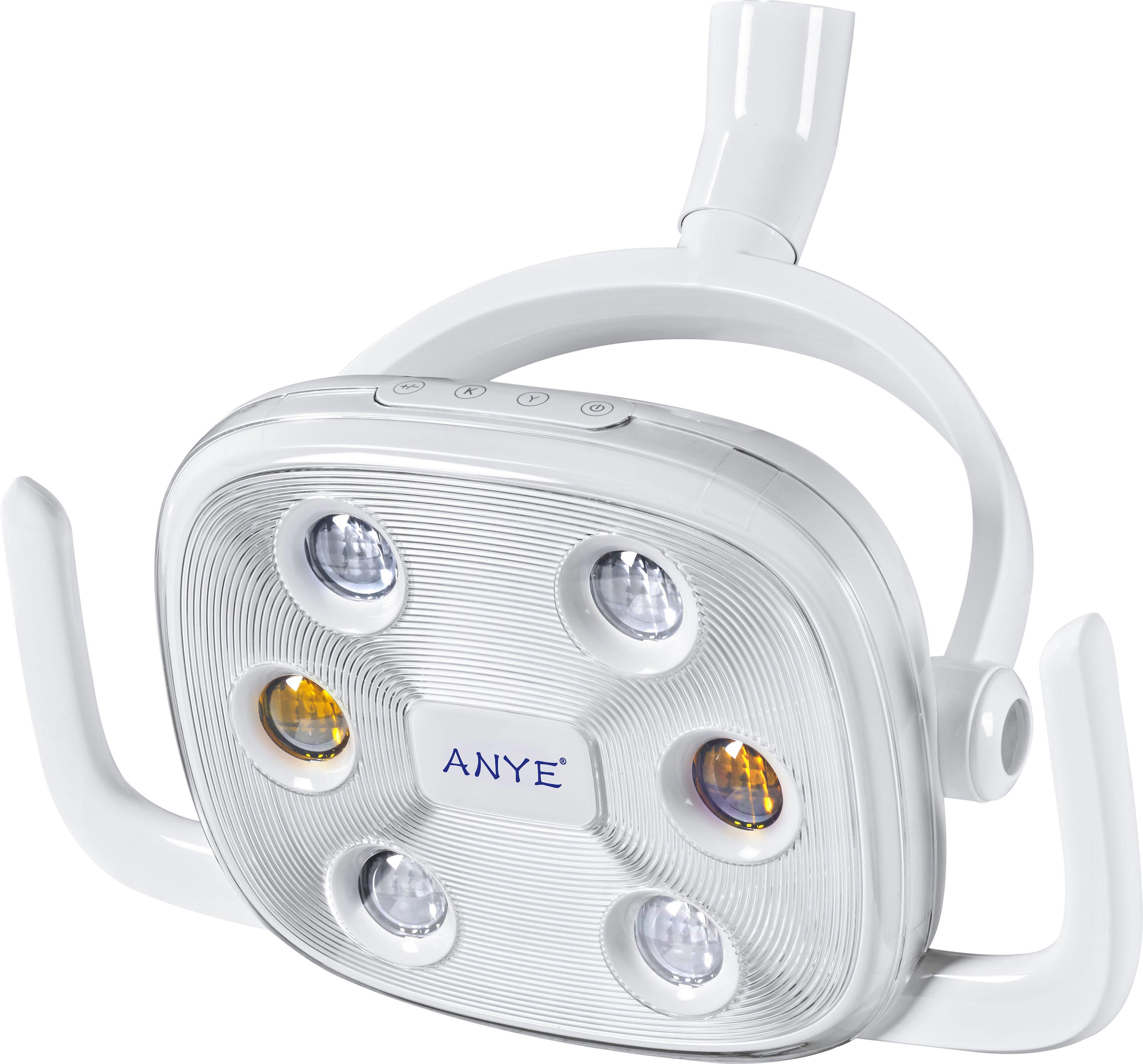

6 Beads LED Operating Light
