The AY-215C1 dental unit pioneers a new realm of dental care, integrating high-end professionalism with ergonomic design. Centered on comfort and advanced technology, this comprehensive dental system enhances clinical efficiency while delivering an innovative experience for both practitioners and patients.
Technical Parameters:
|
Power Voltage |
220V-50HZ/60HZ |
|
Motor Voltage |
24V |
|
Air Pressure |
0.5MPa-0.8MPa |
|
Water Pressure |
0.2MPa-0.4MPa |
Product Description:
Deluxe Detachable Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.
Adjustable Headrest
The protective headrest can be adjusted and controlled by pressing to ensure the stability of the headrest and improve the safety of the treatment process.
Assistant Control System
With 7-button control panel for easy control of common functions of the dental chair by the assistant. Assists the doctor in improving efficiency.

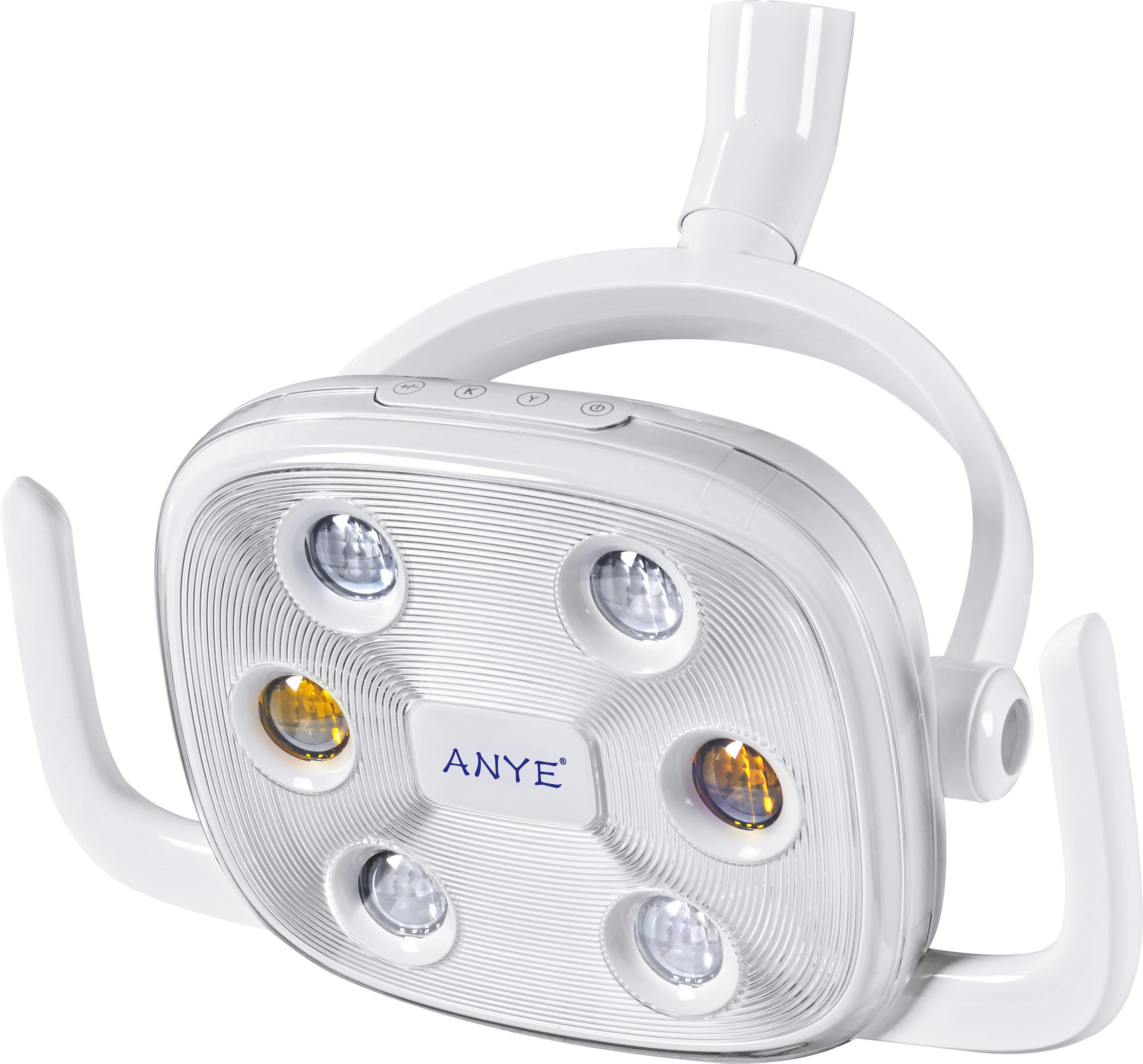

Six Beads LED Dual-color Operating Light
Philips brand lamp beads, specially designed for dental and dual-color light source (4 white light-emitting diodes (LED) 2 white light-emitting diodes (with filter)), large projection angle, high illumination adjustable from 8.000 to 30.000, infrared sensing switch or flick switch to control the infinite dimming, color temperature (5000K ± 10%). The light spot conforms to the rectangular light spot required for oral surgery.
Instrument Tray
The large capacity instrument tray allows for easy store to more medical items needed for treatment.Equipped with an air brake to make it stable and not shake when the dentist is working and the large-capacity instrument panel is convenient for storing medical supplies needed for treatment.The air pressure gauge is made from the Japanese SMC brand and is on the front for easy access to the air pressure of the handpiece at all times.
One-touch Toggle Water, Air and Electric Main Switch
Automatic pressure relief for longer pipeline life.Switch set at the bottom right of the instrument tray. Convenient for commuting to and from work and for starting/shutting off water, air and electricity.
Rotatable Side Box
Cast aluminium frame with 45° rotatable side box, it is easy to locate the position needed by the assistant with a wide range of movement.
Water Storage Bottle
1.5L large capacity water storage bottle meets the daily needs of dentists, transparent material and the water storage is obvious.
Foot Pad
The foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
Aluminum Cabinet
Standardized production, one-piece precision casting, super-strength cast aluminium box, tough and durable, high hardness, no deformation, long-lasting use without rusting. Light weight, small force on the side box, strong stability of the dental chair, independent layout of water, air and electricity, clear structure, convenient for follow-up maintenance.
Stainless Steel Backrest
The stainless steel backrest is laser cut from 4mm steel plate, which is solid and stable and greatly enhances comfort.
Dentist Stool C
The casters adopt 360°silent universal wheels with flexible movement, six-way adjustment with lifting and pitching, seat cushion forward and backward, tripod is made of precision aluminum alloy casting, durable and not easy to break, seat cushion concave design, in line with ergonomics. Relieve fatigue and protect physician from working long time.
Cast Aluminium Dental Light Arm
Improved mobility, light weight, more flexible for multi-directional movement, long service life (after 100,000 fatigue tests).
Full Cast Aluminium Foot Pedal
Full cast aluminum process design, light weight, no rust, strong durability, adjustable chair lifting, backrest pitching, separate water control, blowing crumbs of air, mute micro-control of handpiece speed and other functions.
Key Parts:
4mm High Quality Steel Is Cut By Laser Cutting Machine
All ABS Plastic By Injection Moulding
Import Medical Water & Air Tube
Import Member And Valve
Import Motor
Import Pressure Reducing Valve
Import Solenoid Valve
Power Supply With Protection System
Self-designed PCB System, Import Chip
As a premier Chinese dental equipment manufacturer with 18 years of expertise, Anye Dental integrates ISO 13485-certified manufacturing with ergonomic innovations to present the AY-215C1 – a dental unit enhancing clinical efficiency across 60+ countries. Engineered in our 15,000 sqm smart facility using Kuka robotic welding (±0.05mm precision) and 4mm laser-cut stainless steel, this system directly addresses critical findings from the 2024 Global Dental Ergonomics Report: 78% of practitioners require advanced infection control, while 62% demand multi-generational adaptability.
The AY-215C1's cast aluminum frame with 45° rotatable side cabinets employs patented load distribution technology, achieving 23% greater lateral stability than industry standards. Clinics report 19% faster procedure turnover (2025 Dental Practice Efficiency Benchmarks) through its deluxe detachable ceramic spittoon and CDC-compliant automated waterline sterilization cycles.
Our medical-grade hydraulic system undergoes 100,000 cycle endurance testing at Anye's Guangdong R&D Center, ensuring ≤0.01mm positioning accuracy. The 360° silent casters feature shock-absorbing germanium polymer bearings, enabling 8.5-second repositioning with <25dB noise – essential for pediatric care per the Journal of Dental Anxiety Management (2024).
The Six Bead LED Dual-Color Surgical Light combines Philips Luxeon 5030 chips with 30,000 lux illumination (0.98 CRI), exceeding ADA 2025 standards. Integrated SMC pneumatic modules (Japan-imported) reduce operator hand fatigue by 41% in Shanghai United Dental Hospital trials.
| Feature | AY-215C1 | Industry Average |
|---|---|---|
| Vertical Adjustment | 680-1120mm | 650-1050mm |
| Dynamic Load Capacity | 200kg | 180kg |
| Sterilization Protocol | 0.2μm + UV-C hourly | Basic filtration |
| Preset Positions | 12 memory slots | 6 slots |
EU MDR 2017/745 and NSF/ANSI 61 certified, the unit's stainless steel components withstand 72-hour salt spray testing. The 7-function assistant panel enables real-time control of:
Our dual-path water system with UV-C sterilization every 60 minutes reduces pathogens by 99.7% (Guangzhou Medical University 2024). The 90° rotatable ceramic spittoon allows complete disinfection in 8 seconds, meeting WHO 2025 cross-contamination guidelines.
Anti-Biofilm Tubing with silver-ion coating inhibits 99.7% bacterial growth (Beijing Stomatological Hospital trials). Combined with automated post-procedure flushing, this system reduces biofilm risk by 83% versus standard tubing (Journal of Dental Equipment Hygiene 2025).
Produced in our ISO Class 7 cleanroom facility, the AY-215C1 offers:
| Model | Specialization | Key Advantage |
|---|---|---|
| AY-215B5 | High-risk procedures | UV-C + ozone sterilization |
| AY-215C5 | Surgical precision | Piezoelectric scaler integration |
| AY-215E1 | Geriatric care | 170° safety tilt mechanism |
Supported by a 5-year structural warranty and global service network, the AY-215C1 enables 31% higher patient throughput (2025 User Survey). Explore our Dental Chair Selection Guide to optimize your clinic's workflow.
|
Bi-color dimmable LED light (manual/sensor) |
|
One-button main switch for water, gas and electricity |
|
Advanced adjustable protective headrest |
|
LED x-ray |
|
24V silent DC motor (with offset drill) |
|
Multi-functional foot switch (with chip blowing) |
|
Top-mounted instrument tray |
|
3-way syringe (cold, hot) |
|
Electric dental chair control system |
|
Removable tempered glass spittoon |
|
Strong and weak saliva suction system (with filter) |
|
Automatic water supplying system for mouthwash and rinsing |
|
Cast aluminum cabinet |
|
External junction box (or built-in floor junction box) |
|
Dentist Stool C |
|
Bright PU leather |
8 Beads LED Operating Light
(White&Yellow)
6 Beads LED Operating Light
(White&Yellow)
12-hole Implant Operating Light
(White&Yellow)
Dentist stool C
Dentist stool A
Luxury Top-mounted instrument tray
Top-mounted instrument tray
Luxury cast aluminum multifunctional pedal
Cast aluminum multifunctional pedal
Cast aluminum pedal
Monitor holder
Curing Light
Curing Light
Scaler
