High-end professional comprehensive dental treatment unit: ANYE AY-215B3, with ergonomics and technology at the core of its design, provides spacious and comfortable seating and enhanced back support for patients.
Technical Parameters:
|
Power Voltage |
220V-50HZ/60HZ |
|
Motor Voltage |
24V |
|
Air Pressure |
0.5MPa-0.8MPa |
|
Water Pressure |
0.2MPa-0.4MPa |
Product Description:
Deluxe Detachable Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.
Instrument Tray
Electric dental chair control system with 18 keys main control panel, including 9 memory bits control, one key in place preset work position, one key spit position, greatly enhance dentists's work efficiency.
Multifunctional Foot Pedal
Incorporating the chair interlocking system, backrest lift and tilt, sputum flushing and gargling, one-button reset, dental light control, silent micro-controllable handpiece speed and other functions.
Deluxe Backrest
Inside the stainless steel backrest is laser cut from 4mm steel plate, the outer layer is inlaid with PU material, solid and stable, the comfort is greatly enhanced.
White and Yellow Light LED Operating Lamp
Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from ＜8,000 to ＞30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%

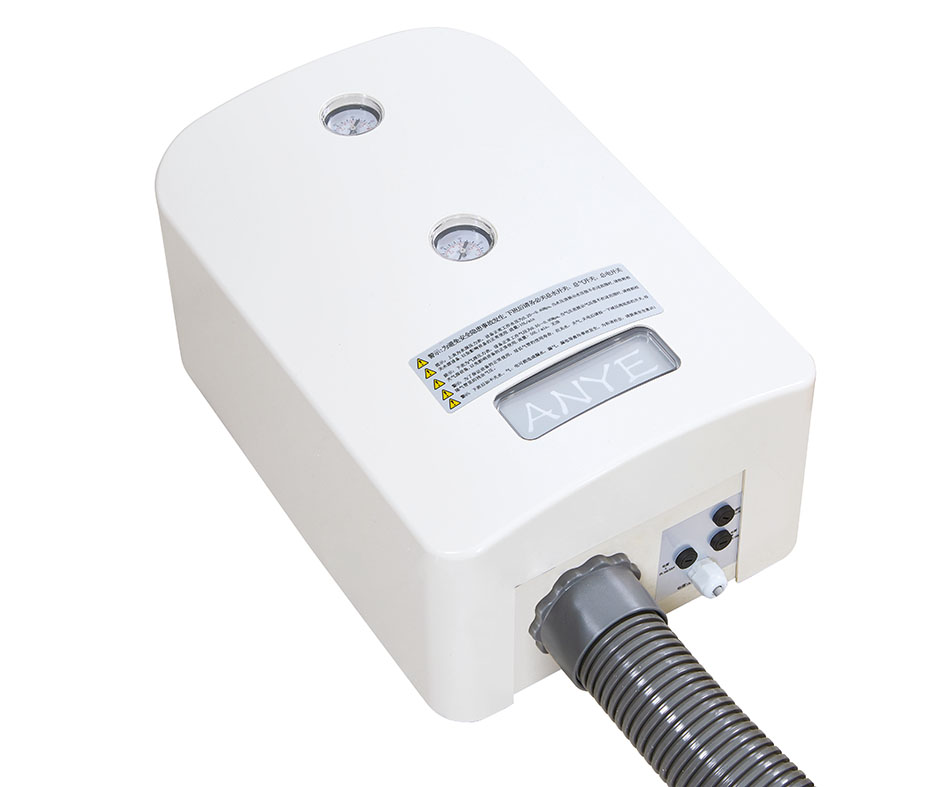

Optional Junction Box
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole chair.
Dentist Stool C
The casters adopt 360°silent universal wheels with flexible movement, six-way adjustment with lifting and pitching, seat cushion forward and backward, tripod is made of precision aluminum alloy casting, durable and not easy to break, seat cushion concave design, in line with ergonomics. Relieve fatigue and protect physician from working long time. The stool lift range is 450mm-600mm.
Multifunctional Foot Pedal
Incorporating the chair interlocking system, backrest lift and tilt, sputum flushing and gargling, one-button reset, dental light control, silent micro-controllable handpiece speed and other functions.
One-touch Toggle Water, Air and Electric Main Switch
Automatic pressure relief for longer pipeline life. Switch set at the bottom right of the instrument tray. Convenient for commuting to and from work and for starting/shutting off water, air and electricity.
Assistant Control System
The control panel with multi-functional buttons facilitates the control of the common functions of the dental chair by the assistant. Assists the doctor and improves work efficiency.
Foot Pad
The foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
Aluminum Cabinet
Standardized production, one-piece precision casting, super-strength cast aluminium box, tough and durable, high hardness, no deformation, long-lasting use without rusting. Light weight, small force on the side box, strong stability of the dental chair, independent layout of water, air and electricity, clear structure, convenient for follow-up maintenance.
Shelf Tray
Rotatable tray, can store keys, mobile phones, mirrors, tissues and other items.
Rotatable Side Box
It can be rotated 45 degrees to the left for flexibility and to enhance the assistant's operating space.
Instrument Tray Silicone Pad
Anti-slip silicone pad designed to protect the surface of the instrument tray, facilitate post-operative cleaning and maintain hygiene.
Cast Aluminium Dental Light Arm
Improved mobility, light weight, more flexible for multi-directional movement, long service life (after 100,000 fatigue tests).
Dentist Stool C
Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.
Key Parts:
4mm High Quality Steel Is Cut By Laser Cutting Machine
All ABS Plastic By Injection Moulding
Import Medical Water & Air Tube
Import Member And Valve
Import Motor
Import Pressure Reducing Valve
Import Solenoid Valve
Power Supply With Protection System
Self-designed PCB System, Import Chip
As a leading innovator among China’s top dental chair manufacturers, Anye Dental combines advanced engineering with ergonomic mastery in the Dental Unit AY-215B3. Designed to meet the rigorous demands of contemporary dental practices, this system integrates CE-certified safety protocols and ISO 13485-compliant manufacturing standards, ensuring global reliability. With over 15,000 square meters of production facilities equipped with KUKA robotic arms and laser-cutting precision, Anye delivers equipment trusted by clinics across 60+ countries. The AY-215B3 exemplifies our commitment to merging patient comfort with practitioner efficiency, setting a new benchmark in dental unit design.
The AY-215B3 operates within a 220V-240V voltage range, supporting seamless integration into diverse clinical environments. Its 24V motor system ensures silent, vibration-free adjustments, while the 0.5MPa-0.8MPa air pressure range and 0.2MPa-0.4MPa water pressure settings accommodate both routine procedures and specialized treatments. A self-contained junction box centralizes control of water, air, and electrical systems, featuring a front-facing barometer for real-time pressure monitoring.
For clinics requiring specialized sterilization protocols, the AY-215B5 disinfection model offers enhanced features, while the AY-215D Series pediatric units provide child-friendly configurations. Both models adhere to Anye’s stringent quality controls, validated by ISO 13485 certification and CE compliance.
At the core of the AY-215B3 lies an ergonomic architecture validated by orthopedic research. The laser-cut, 4mm stainless steel backrest is layered with medical-grade PU padding, offering patients unparalleled lumbar support during extended procedures. A 90° rotatable deluxe spittoon simplifies hygiene maintenance, and the multifunctional foot pedal enables practitioners to adjust chair positioning, lighting, and handpiece speed without interrupting workflows.
The Philips LED operating lamp delivers 5,000K±10% color temperature with stepless dimming from 8,000 to 30,000 lux, reducing eye strain during precision tasks. For clinics prioritizing space optimization, the rotatable aluminum side cabinet expands assistant mobility by 45°, and the cast-aluminum instrument tray integrates nine programmable memory presets to streamline instrument access.
Anye’s 360° silent wheelbase and six-way adjustable dentist stool further minimize occupational fatigue, aligning with guidelines from the American Dental Association on ergonomic practice design.
Anye Dental’s 15,000+ sqm production facility in Jiangsu, China, exemplifies industrial excellence through KUKA robotic automation and laser-cutting technology, ensuring millimeter-perfect consistency across every component of the AY-215B3. This advanced infrastructure enables the production of over 8,000 dental units annually, each subjected to a 72-hour stress test simulating a decade of clinical use. The facility’s ISO 13485-certified quality management system mandates rigorous inspections at 23 checkpoints, from hydraulic valve calibration to upholstery seam integrity. Such precision has positioned Anye as a trusted partner for dental institutions in over 60 countries, including the UAE and South Africa, where reliability under high patient volumes is non-negotiable.
The AY-215B3 serves as the foundation for Anye’s modular ecosystem, which includes 12 specialized variants across four series. The AY-215A Series (A1-A5) prioritizes implantology with programmable torque control, while the AY-215B Series (B1-B5) integrates steam sterilization in its B5 model for infectious disease clinics. Pediatric practitioners benefit from the AY-215D Series, featuring scaled-down dimensions and animated LED panels to ease child anxiety. For rehabilitation dentistry, the AY-215E1 combines tilt-free positioning with pressure-relief cushions, ideal for patients with mobility limitations.
This flexibility extends to aesthetic customization, with 18 RAL-certified color options for upholstery and cabinetry. Clinics can further enhance functionality with add-ons like wireless intraoral cameras or noiseless compressors, ensuring each unit aligns with specific operational workflows.
Anye Dental’s 60+ country service footprint is bolstered by regional warehouses in Dubai, Johannesburg, and Manila, enabling same-day spare part dispatch for critical components like motor controllers or hydraulic pumps. Certified technicians undergo bi-annual training on emerging technologies, such as IoT-enabled predictive maintenance systems now standard in the AY-215C5 implantology unit. Clients also receive lifetime access to Anye’s digital maintenance portal, featuring 3D exploded diagrams and firmware update alerts.
For procurement flexibility, Anye offers equipment financing plans with 0% APR options and a 10-year warranty on stainless steel frameworks, reflecting confidence in the AY-215B3’s engineered longevity.
The Dental Unit AY-215B3 encapsulates Anye Dental’s philosophy of harmonizing clinical precision, ergonomic innovation, and global adaptability. As one of China’s foremost dental chair manufacturers, Anye meets the evolving demands of practices from Berlin to Bangkok through CE/ISO-certified manufacturing, robotic precision, and a 360° support ecosystem. Whether upgrading an existing operatory or equipping a new clinic, the AY-215B3 delivers a future-ready foundation, underscored by its compatibility with AI-driven dental technologies and hygiene-focused design.
Explore Anye’s full range of ergonomic dental solutions or consult our team to configure an AY-215B3 unit tailored to your practice’s unique needs.
|
Positive pressure automatic drainage system |
|
One-button water, gas and electricity switch system |
|
Luxury LED oral dual-color lamp (manual/induction) |
|
Microfiber environmentally friendly leather |
|
24V silent DC imported motor (with compensation position) |
|
Advanced adjustable protective headrest |
|
Multi-function foot control switch (with foot self-locking function) |
|
Solenoid valve |
|
LED x-ray viewe |
|
Down-mounted tool tray (LCD display) |
|
Four-hole high-speed handpiece |
|
Four-hole low-speed handpiece |
|
Strong and weak saliva suction system (with filter) |
|
Three-purpose spray gun (cold and hot) |
|
Electric dental chair control system (9 memories) |
|
Luxury detachable glass spittoon |
|
Automatic quantitative water supply system for spittoon flushing and gargling |
|
Cast aluminum cabinet |
|
External junction box (or built-in junction box) |
|
Luxury dentist stool C |
8 Beads LED Operating Light
(White&Yellow)

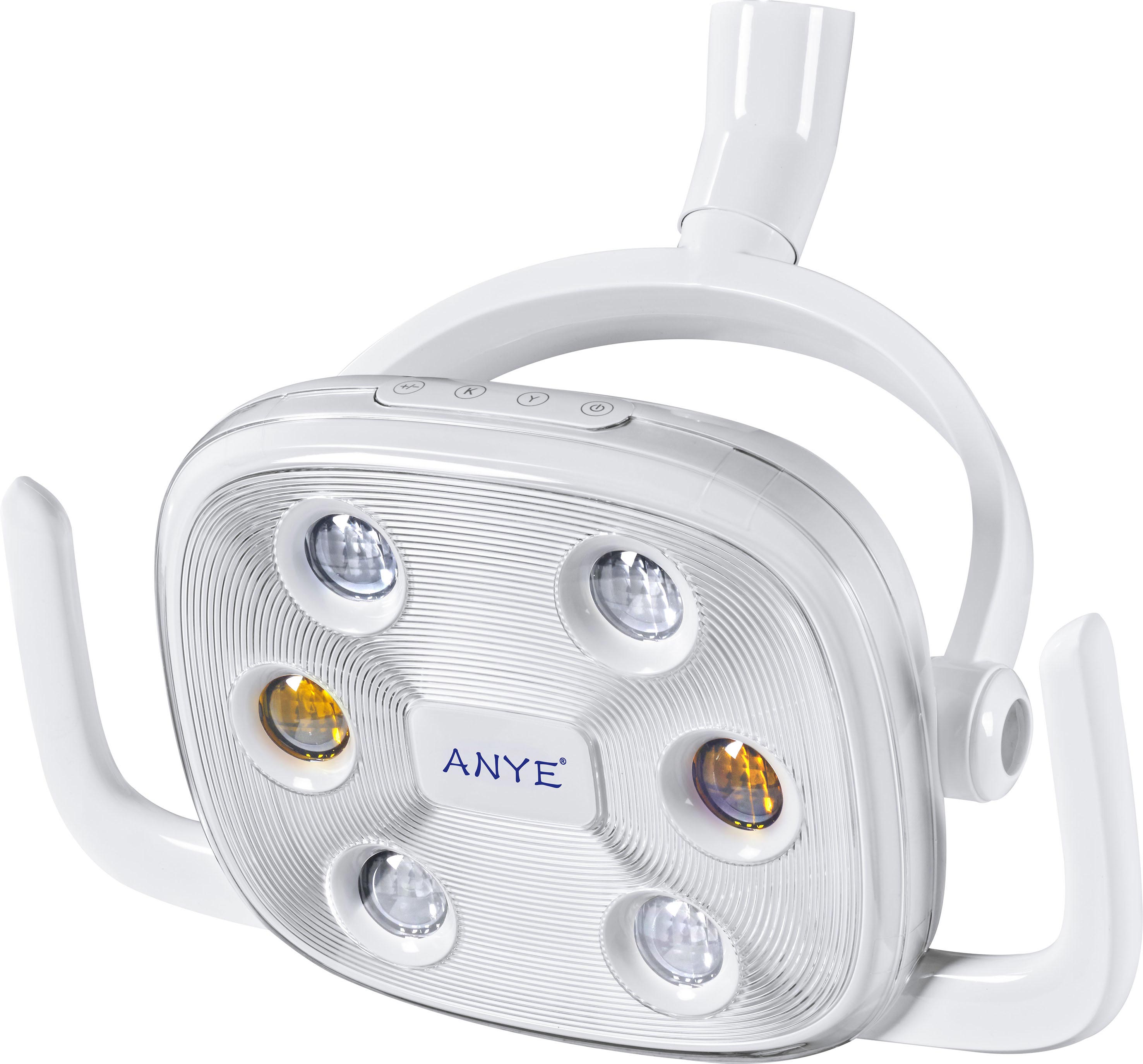

6 Beads LED Operating Light
(White&Yellow)
12-hole Implant Operating Light
(White&Yellow)
Dentist stool C
Dentist stool A
Luxury Top-mounted instrument tray
Top-mounted instrument tray
Luxury cast aluminum multifunctional pedal
Cast aluminum multifunctional pedal
Cast aluminum pedal
Monitor holder
Curing Light
Curing Light
Scaler
