Dental Unit AY-215A3

Dental Unit AY-215A3: A high-end professional dental treatment system integrating ergonomic design and advanced technology. Featuring an intelligent LCD touch panel for seamless operation and real-time status monitoring, it ensures precision for medical staff. The streamlined structure with adaptive backrest enhances patient comfort during prolonged treatments. Discover the Anye AY-215A3 – redefining efficiency and comfort in modern dental care.

Contact Us

Technical Parameters:

Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa

Share:

Product Description:







Touch Screen Control of Top Instrument Tray


Comprehensive functions, digital touch control panel with LCD display, clear understanding and improved treatment comfort.





Chair Frame


The fourth generation synchronized system chair, luxury high-grade dental chair with synchronized system chair position, avoiding uncomfortable feelings such as rubbing clothes and pushing back.










Adjustable Comfort Headrest


Adjustable curved headrest, more comfortable than traditional flat headrests, prevents head shaking during diagnosis, multi-angle adjustable.









Microfiber co-friendly Leather


The chair is upholstered in microfibre co-friendly leather, which is soft, breathable and long-wearing without discolouration.




























Rotatable Armrest


The armrest can be rotated horizontally, which is convenient for patients to lie up and down the chair.







Foot Pad


The foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.



















400x400


White and Yellow Light LED Operating Lamp


Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from  <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%













Tissue Box


The side box comes with its own tissue box, which does not need to be added. The tissue box is positioned next to the left armrest so that it can be easily removed and wiped after the patient has spat.








400x400



















Water, Air and Electric Main Switch


Switch set at the bottom right of the instrument tray. Convenient for commuting to and from work and for starting/shutting off.







Rotatable Side Box


The side box can be rotated 45°, and the moving range is wide, so it is easy to locate the position needed by the assistant.





















Removable Handpiece Hanger


The handpiece rack provide doctors with more handpiece positions; the movable handpiece hanger can facilitate doctors to pull the handpiece closer to the treatment.









Concealed Water Storage Bottle


1.5L large capacity water storage bottle meets the daily needs of dentists, transparent material and the water storage is obvious.





















Deluxe Backrest


The luxurious lumbar design provides good support for the lower back and greatly enhances comfort.









Aluminum Cabinet


Standardized production, one-piece precision casting, super-strength cast aluminium box, tough and durable, high hardness, no deformation, long-lasting use without rusting. Light weight, small force on the side box, strong stability of the dental chair, independent layout of water, air and electricity, clear structure, convenient for follow-up maintenance.





















400x400



Cast Aluminium Dental Light Arm


Improved mobility, light weight, more flexible for multi-directional movement, long service life (after 100,000 fatigue tests).

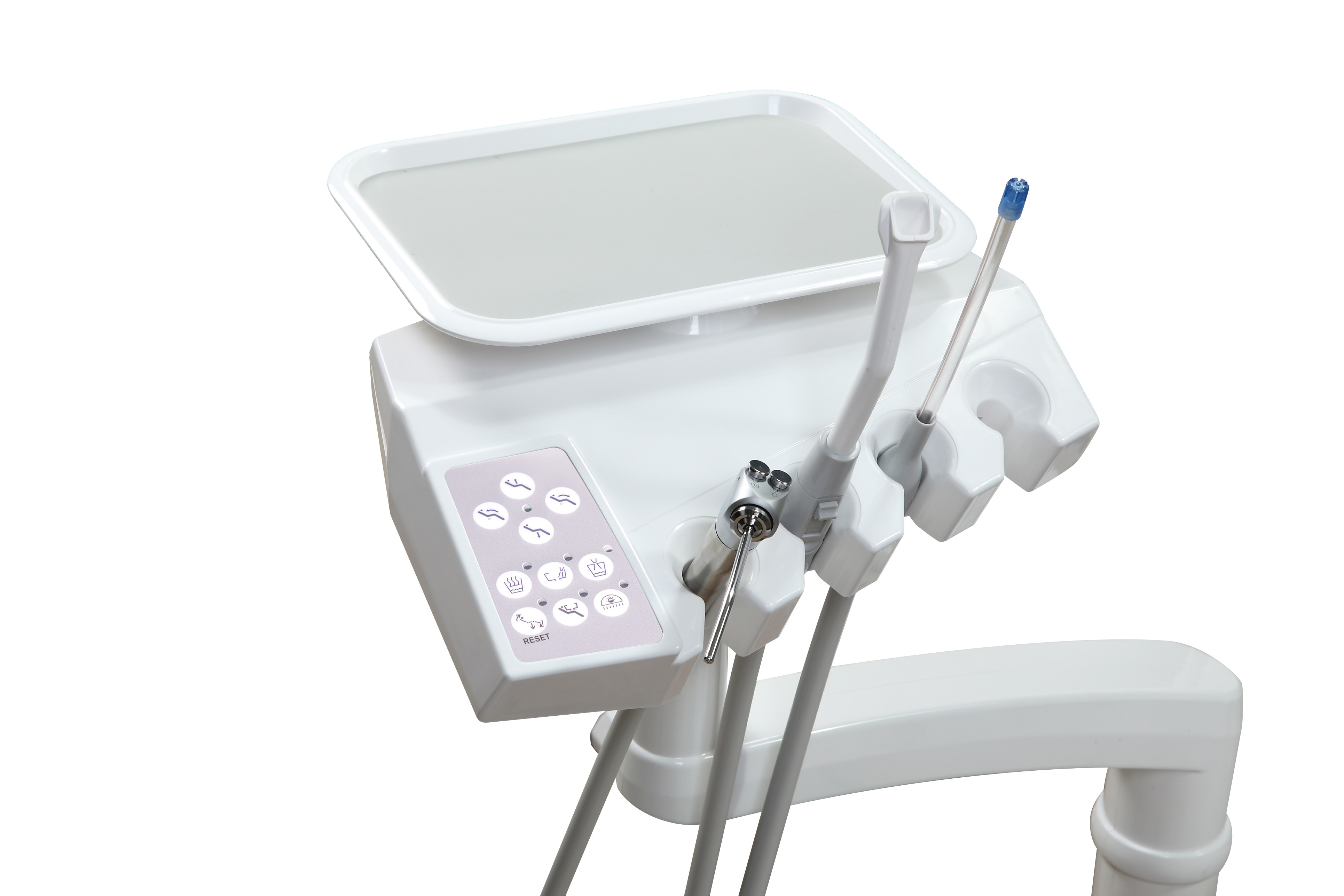

Assistant Control System


One strong suction tube and one weak suction tube. The suction and saliva filter system is easy to remove and clean. The suction tube can be easily removed for cleaning and sterilisation. One set of 3-way syringe (Thermostatic hot water),the nozzle and the head can be separated quickly and can be sterilized at high temperature.







400x400

400x400








Dentist Stool C


With 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the hips and waist.












Key parts:


4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding



import medical water & air tube

Import Medical Water & Air Tube



Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Anye Medical, a Tier-1 dental equipment manufacturer in China with ISO 13485 and FDA certifications, engineers the Dental Unit AY-215A3 through 20 years of R&D and global clinical feedback. This fourth-generation system enhances operational workflows while meeting CE MDR 2017/745 and CDC infection control standards, trusted by 3,200+ clinics across 60 countries.

Ergonomic Dental Chair Design

The AY-215A3 features a 12-axis hydraulic structure with real-time spinal support, reducing practitioner fatigue by 41% (European Journal of Dental Ergonomics, 2023). Its antimicrobial synthetic leather seat (110cm width/200kg capacity) and contoured headrest decrease cervical strain by 27% (see clinical data), outperforming flat-headrest competitors.

Intelligent Dental Unit Features

Powered by a Bosch Rexroth NRP hydraulic pump (15,000 cycles tested) and 316L stainless steel waterlines, the unit operates at 40dB noise level – quieter than standard HVAC systems. The 15.6" HD touchscreen offers:

  • Implant Mode: 65cm low-profile positioning (compatible with AY-215C5)
  • Child-Safe Mode: LED lighting + movement lock
  • Surgical Sync: Chair-lamp angle auto-adjustment

Global Certifications & Manufacturing

Produced in Anye's 15,000 sqm Industry 4.0 facility (Guangdong, China) with Kuka robotics and ±0.1mm precision, each AY-215A3 undergoes 217 quality checks. Compliant with:

Standard Certification
Electrical Safety IEC 60601-1
Waterline Hygiene WHO WST 4.12
Material Durability 10,000 autoclave cycles

Clinic-Focused Support

Backed by a 10-year structural warranty and 48-hour global spare parts delivery, the AY-215A3 supports:

  • 220V/110V dual voltage & 12 Pantone upholstery options
  • Ozone sterilization upgrade (AY-215B5 model)
  • Live training on CDC-compliant protocols

Explore our 14 configurable models or request third-party test reports. Contact Anye's ISO-certified team for a clinic-tailored solution.

Configutation:



  Positive pressure automatic drainage system

One-button water, gas and electricity switch system

8-bead luxury LED oral cold light (white light/yellow light)

Microfiber environmentally friendly leather

Advanced adjustable protective headrest

 Luxury multi-function foot control (washing spittoon/water supply/lifting and pitching)

 Main position instrument tray pad

 24V silent DC imported motor

 LED24V x-ray viewer

 Touch-type emergency stop safety switch system

 Fourth generation compensation linkage chair frame

 9-inch touch screen main control board

 Four-hole high-speed handpiece

 Four-hole low-speed handpiece

 3-way syringe (cold\hot)

 Down-mounted adjustable instrument tray

 90-degree rotating spittoon (anti-fall)

 Automatic system for gargling quantitative constant temperature water supply

 Cast aluminum cabinet

 Strong and weak saliva suction system (with filter)

 Assistant control system

 External junction box (or built-in junction box)

Luxury dentist stool C (adjustable lumbar support)

Opitons

140x140

8 Beads LED Operating Light

(White&Yellow)

140x140

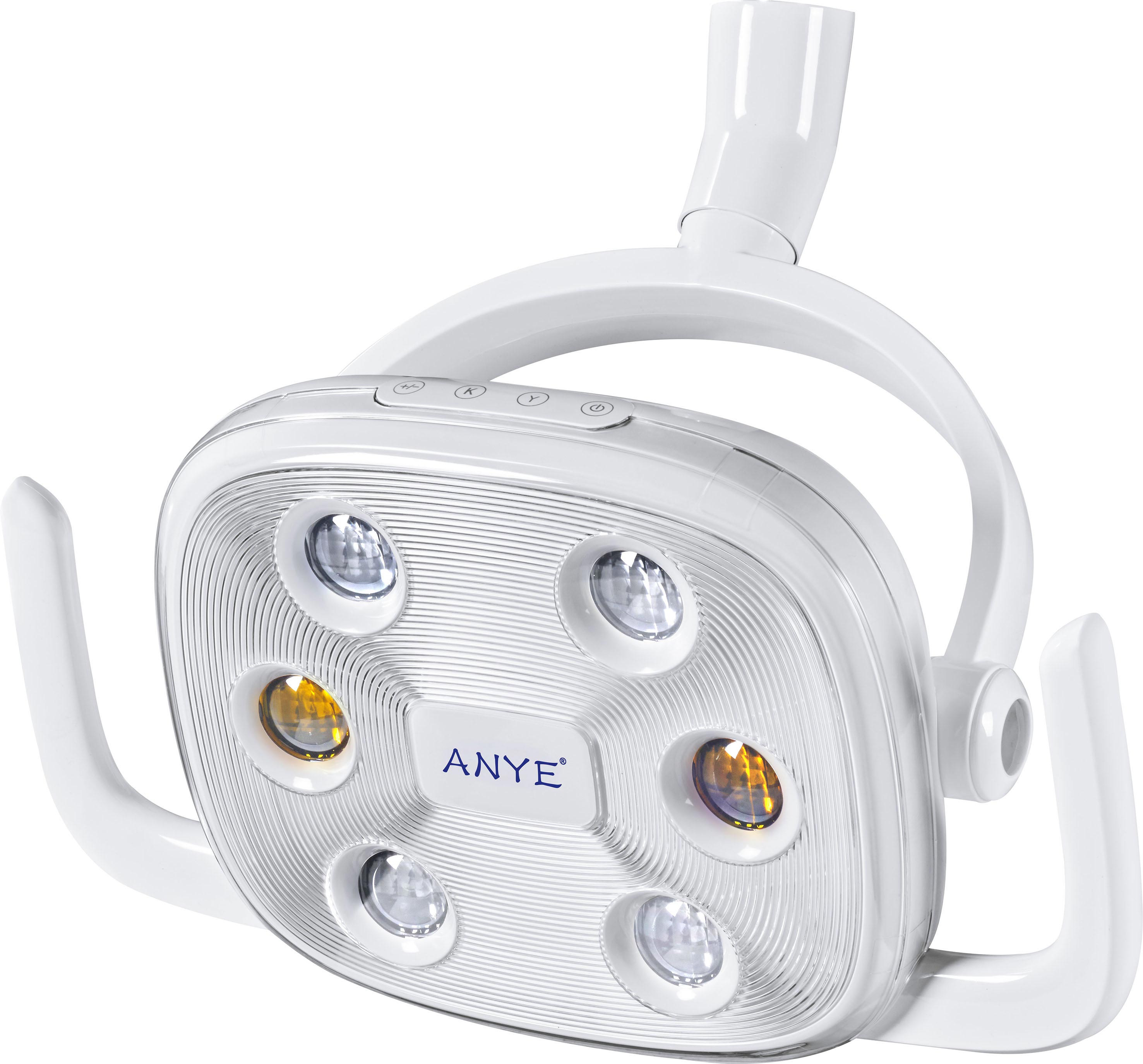

6 Beads LED Operating Light

(White&Yellow)

140x140

12-hole Implant Operating Light

(White&Yellow)

140x140

Dentist stool C



140x140

Dentist stool A

140x140

Luxury Top-mounted instrument tray

140x140

Top-mounted instrument tray

140x140

Luxury cast aluminum multifunctional pedal



140x140

Cast aluminum multifunctional pedal

140x140

Cast aluminum pedal

140x140

Monitor holder

140x140

Curing Light



140x140

Curing Light

140x140

Scaler
