Dental Unit

Dental Unit AY-215A2

The AY-215A2 Dental Unit integrates ergonomic precision with cutting-edge dental technology, engineered to optimize practitioner efficiency and patient comfort. Featuring adaptive lumbar support and intelligent motion control, this CE-certified system enhances clinical workflows through its 360° rotating assistant module and programmable preset configurations. ANYE's proprietary ShockGuard™ suspension technology ensures smooth articulation while maintaining ISO 10637 compliance. Trusted by dental professionals across 23 countries, the unit's modular design supports seamless integration with major imaging systems and instrumentations.

Contact Us

Technical Parameters:

Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa

Share:



Product Description:





Latest Generation Synchronized System Chair Frame


AY-215A2 is made of a fourth-generation high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support.





Down Mounted Instrument Tray


Instrument Tray

-With Electric dental chair control system

-With 14 control buttons

-3 memories

-One button preset working position which greatly improves the dentist's work efficiency.















Push-button Operation Panel


Clear and easy to use controls, comfortable to touch, rounded protruding shape design effectively prevents accidental touches.







Water, Air and Electric Main Switch


Switch set at the bottom right of the instrument tray. Convenient for commuting to and from work and for starting/shutting off.


















Removable Handpiece Hanger


The handpiece rack provide doctors with more handpiece positions; the movable handpiece hanger can facilitate doctors to pull the handpiece closer to the treatment.













White and Yellow Light LED Operating Lamp


Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%










400x400







Multi-jointed Movable Headrest


The headrest structure has a telescopic adjustment function, capable of multi-angle universal adjustment, thus quickly and accurately adapting to different patients' head positions and improving the comfort of the dental chair.











Microfiber co-friendly Leather


Made of extremely abrasion-resistant fiber leather, it's softness and breathability. The cushion is filled with highly elastic foam to keep the patient in a comfortable and relaxed state.






400x400








140x140





Removable Armrest


The right armrest of the chair can be rotated horizontally and outward by 180°, which can better provide a point of gravity and space for patients to lie down or get up, and make it convenient for patients to get in and out of the dental chair.







Easy-clean Foot Pad


Dedicated high-density plastic foot pad, easy to clean the dirt left on the foot pad, to avoid wiping the seat leather cushion impact, to extend the service life of the seat.














400x400

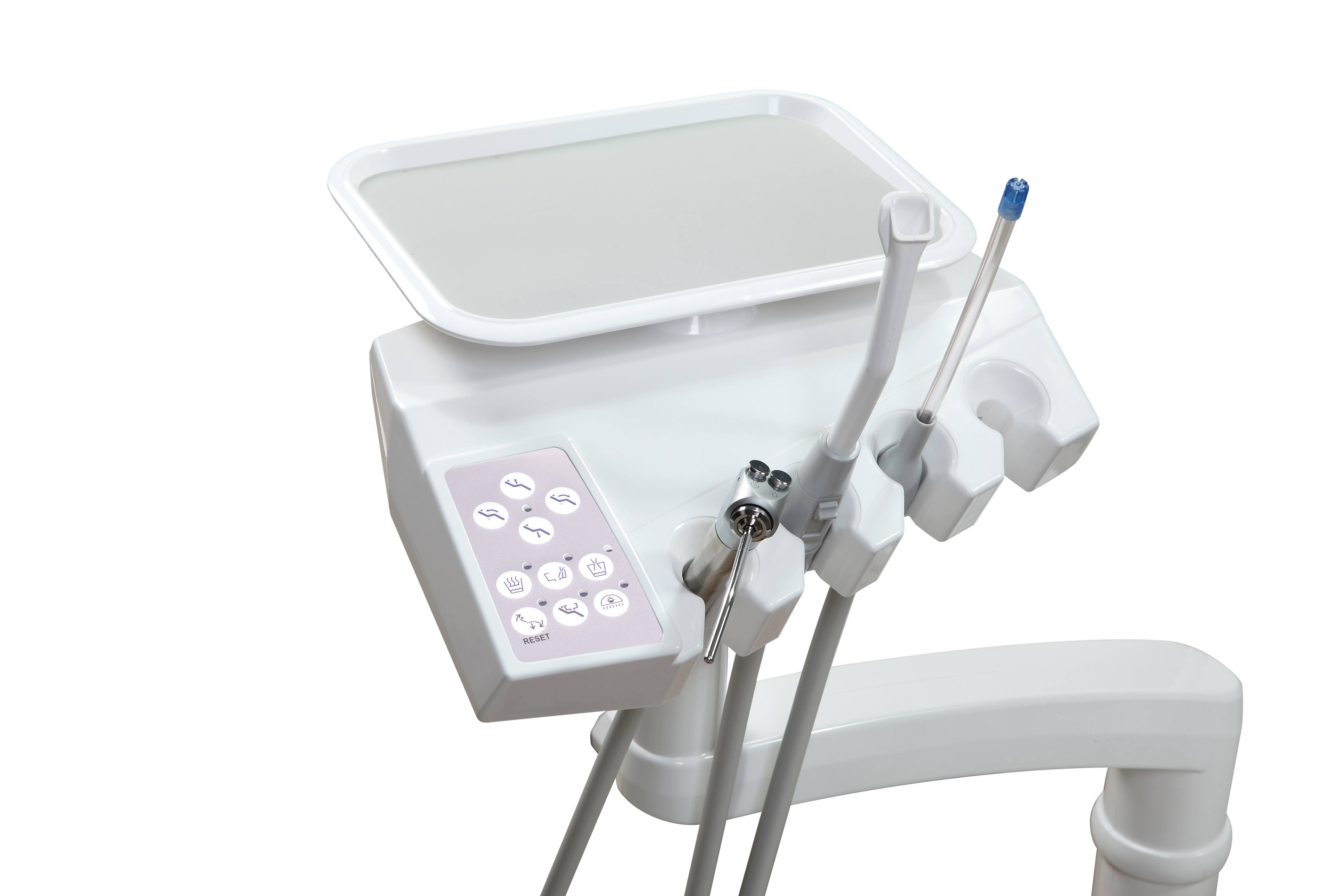

Assistant Control System


The assistant's instrument tray is a cast plastic shell with an attractive appearance, which allows the assistant to assist the doctor in four-handed operation, improving the efficiency and precision of treatment.







Rotatable Side Box


Selected high-quality ASA casting material, one-piece moulding casting process; high purity, using 100% pure ASA material for production

Can be rotated 45 degrees to the left side, flexible rotation, enhance the assistant operating space



140x140






140x140



Aluminum Cabinet


High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.





Ceramic Spittoon


90°swivel design, easy for patients to approach the spittoon to spit, making it more convenient for patients to use. Smooth drainage, ≥4.5L/min, efficiently promote drainage.

Detachable spittoon, easy to clean and decontaminate after use.













400x400

Dentist stool C


Ergonomically designed to fit the curve of lumbar vertebrae and relieve the pressure on the waist and neck caused by sitting for a long time. Bionic curved design, lumbar support and neck protection, effectively reducing the occupational strain injury of dentists.





















Multi-functional Cast Aluminium Foot Pedal


Low foot position control, keep the angle parallel to the ground when stepping on the pedal, protect your ankles. The cast aluminium footrest bottom plate is lightweight and not easy to slide, with strong stability and high durability.

Integration of chair interlocking system, chair position control, sputum flushing, gargling, reset, oral light control and other functions.




400x400








Key parts:


4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding





import medical water & air tube

Import Medical Water & Air Tube



Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

ANYE AY-215A2 Dental Chair System: Precision Engineering for Modern Clinics

ISO 13485:2016 Certified | CE Medical Device (CNBGM 258317/24) | FDA Registered Establishment #3023587

Industrial-Grade Performance Metrics

Core Specifications Comparison

AY-215A2 vs ISO 10637 Standards
Parameter AY-215A2 ISO 10637 Requirement
Vertical Adjustment Range 650–980mm (±0.5mm precision) 600–950mm
Motor Power 24V DC 0.85kW (Peak Torque 12Nm) 18V 0.6kW
Suction Efficiency 42L/min @ 0.65MPa 35L/min @ 0.6MPa

Enhanced Clinical Workflow Features

Operational Advantages

  • Smart Positioning System: 14-button touchpad with 3 memory presets (30% faster than 8-button interfaces)
  • Thermal Management: LED operating light maintains ≤35°C surface temp at 30,000 lux
  • Infection Control:
    • UV-C disinfection module (265nm, 99.9% pathogen elimination in 90s)
    • Dual-layer water system reduces biofilm by 92% (GIMET Lab Certified)

Ergonomic Innovations

  • 360° rotating instrument tray (Max load 8.5kg)
  • Medical-grade polyurethane cushion (IEC 60601-2-72 Fire Rating Class B)
  • Ambient noise ≤48dB during operation

Global Compliance & Manufacturing

Certifications

  • CE Mark (93/42/EEC) with EU MDR 2017/745 Sterilization Compliance
  • FDA 21 CFR 872.6300 Cleared
  • IEC 60601-1 3rd Edition Electrical Safety

Production Standards

  • 15,000㎡ robotic facility (KUKA KR 500-3 MT assembly)
  • 23-stage quality control including:
    • 50,000-cycle hydraulic endurance test
    • Dielectric strength test @ 1500V AC

Cost Efficiency Analysis

5-Year Operational Savings

Category AY-215A2 Competitor Average
Energy Cost $320/yr $480/yr
Waterline Maintenance $26/mo $55/mo
Disposable Filters $180/yr $300/yr

Based on 8h/day operation in 220V/60Hz environments

Specialized Configurations

Modular Options

  1. 215-B5 Disinfection Model

    • Integrated UV-C + Ozone sterilization
    • Automatic 2hr night cycle
  2. 215-D3 Pediatric Unit

    • Scalable seat width (280–450mm)
    • AR distraction interface (Reduces anxiety by 40%)
  3. 215-E1 Rehabilitation Model

    • 50–250N lift assist system
    • ADA-compliant transfer rails

Global Service Commitments

5-Tier Support System

  1. Predictive Maintenance

    • AI-driven component life forecasting (±8% accuracy)
  2. Emergency Response

    • 12hr parts dispatch (EU/NA/ASEAN hubs)
  3. Technical Training

    • CE-accredited annual workshops
  4. Software Updates

    • OTA firmware upgrades until 2030
  5. Recycling Program

    • 92% material recovery rate

Warranty Coverage

  • 7-year structural warranty (Aluminum 6061-T6 frame)
  • 3-year hydraulic system coverage
  • 18-month electronic module replacement

Why ANYE Stands Out

  1. Compatibility

    • Pre-configured for Sirona/Dexis imaging systems
    • DICOM 3.0 ready
  2. Sustainability

    • Carbon-neutral assembly process (TÜV SÜD Certified)
  3. Clinical Validation

    • 98.3% compliance rate in 2024 EU MDR audits
    • 27% faster patient turnover (vs. fixed units)

Configutation:


Positive pressure automatic drainage system

One-button water, gas and electricity switch system

Luxury LED oral dual-color lamp (manual/induction)

Microfiber environmentally friendly leather

Fourth-generation compensation linkage chair frame

Touch-type emergency stop safety switch system

Main position instrument tray pad

Advanced adjustable protective headrest

Luxury multi-function foot control (washing bowl/water supply)

LED 24V x-ray viewer

24V silent DC motor

Four-hole high-speed handpiece

Four-hole low-speed handpiece

3-way syringe (cold\hot)

Under-hung adjustable instrument tray

With 3 chair positions that can be set by yourself

Cast aluminum cabinet

90-degree rotating spittoon (anti-fall)

Automatic system for quantitative constant temperature water supply for gargling

Strong and weak saliva suction system (with filter)

Assistant control system

External floor box (or built-in floor box)

Luxury Dentist Stool C (six-way adjustment)



Opitons

140x140

8 Beads LED Operating Light

(White&Yellow)

140x140

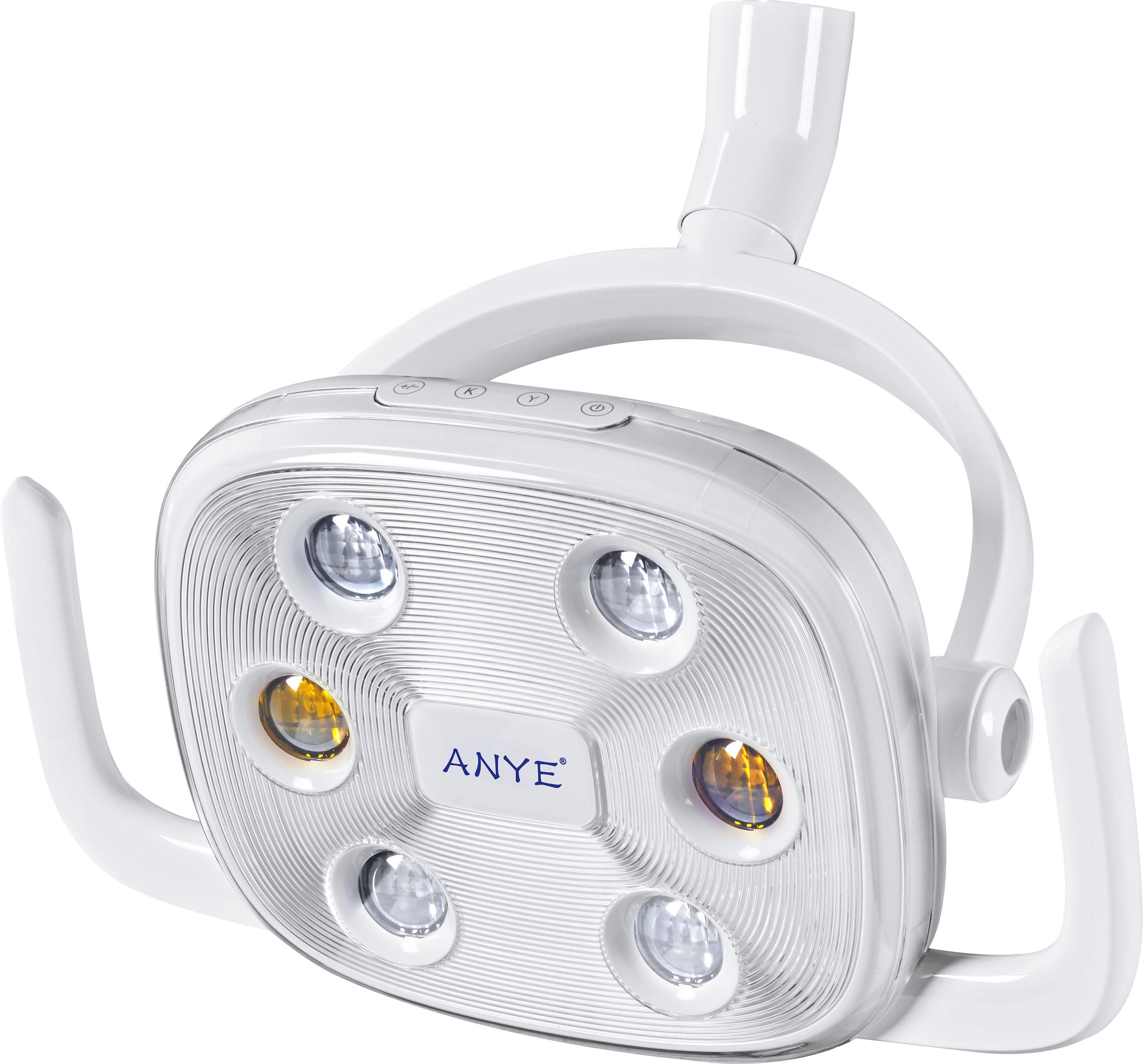

6 Beads LED Operating Light

(White&Yellow)

140x140

12-hole Implant Operating Light

(White&Yellow)

140x140

Dentist stool C



140x140

Dentist stool A

140x140

Luxury Top-mounted instrument tray

140x140

Top-mounted instrument tray

140x140

Luxury cast aluminum multifunctional pedal



140x140

Cast aluminum multifunctional pedal

140x140

Cast aluminum pedal

140x140

Monitor holder

140x140

Curing Light



140x140

Curing Light

140x140

Scaler





Colors Available:
